Real-Time Data Transfer from Apache Flink to Kafka to Druid for Analysis/Decision-Making

Businesses can react quickly and effectively to user behavior patterns by using real-time analytics. This allows them to take advantage of opportunities that might otherwise pass them by and prevent problems from getting worse.

Apache Kafka, a popular event streaming platform, can be used for real-time ingestion of data/events generated from various sources across multiple verticals such as IoT, financial transactions, inventory, etc. This data can then be streamed into multiple downstream applications or engines for further processing and eventual analysis to support decision-making.

Apache Flink serves as a powerful engine for refining or enhancing streaming data by modifying, enriching, or restructuring it upon arrival at the Kafka topic. In essence, Flink acts as a downstream application that continuously consumes data streams from Kafka topics for processing, and then ingests the processed data into various Kafka topics. Eventually, Apache Druid can be integrated to consume the processed streaming data from Kafka topics for analysis, querying, and making instantaneous business decisions.

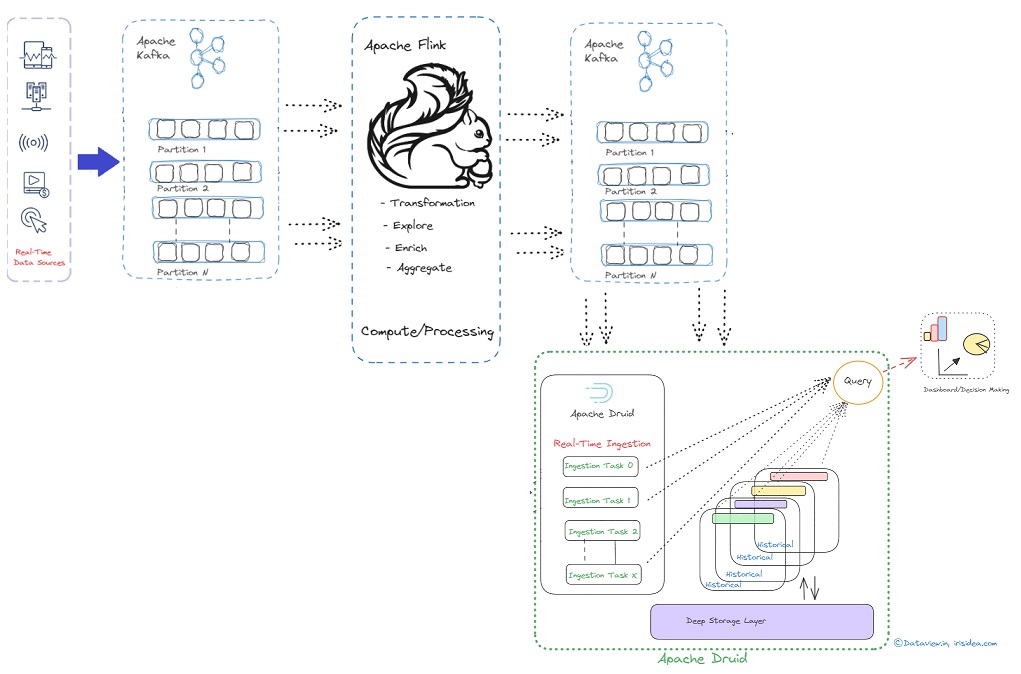

Click here for an enlarged view

In my previous write-up, I explained how to integrate Flink 1.18 with Kafka 3.7.0. In this article, I will outline the steps to transfer processed data from Flink 1.18.1 to a Kafka 2.13-3.7.0 topic. A separate article detailing the ingestion of streaming data from Kafka topics into Apache Druid for analysis and querying was published a few months ago. You can read it here.

Execution Environment

• We configured a multi-node cluster (three nodes) where each node has a minimum of 8 GB RAM and 250 GB SSD along with Ubuntu-22.04.2 amd64 as the operating system.
• OpenJDK 11 is installed with JAVA_HOME environment variable configuration on each node.
• Python 3 or Python 2 along with Perl 5 is available on each node.
• A three-node Apache Kafka-3.7.0 cluster has been up and running with Apache Zookeeper -3.5.6. on two nodes.
• Apache Druid 29.0.0 has been installed and configured on a node in the cluster where Zookeeper has not been installed for the Kafka broker. Zookeeper has been installed and configured on the other two nodes. The Leader broker is up and running on the node where Druid is running.
• Developed a simulator using the Datafaker library to produce real-time fake financial transactional JSON records every 10 seconds of interval and publish them to the created Kafka topic. Here is the JSON data feed generated by the simulator.

  JSON



  {"timestamp":"2024-03-14T04:31:09Z ","upiID":"9972342663@ybl","name":"Kiran Marar","note":" ","amount":"14582.00","currency":"INR","geoLocation":"Latitude: 54.1841745 Longitude: 13.1060775","deviceOS":"IOS","targetApp":"PhonePe","merchantTransactionId":"ebd03de9176201455419cce11bbfed157a","merchantUserId":"65107454076524@ybl"}




• Extract the archive of the Apache Flink-1.18.1-bin-scala_2.12.tgz on the node where Druid and the leader broker of Kafka are not running

Running a Streaming Job in Flink

We will dig into the process of extracting data from a Kafka topic where incoming messages are being published from the simulator, performing processing tasks on it, and then reintegrating the processed data back into a different topic of the multi-node Kafka cluster.

We developed a Java program (StreamingToFlinkJob.java) that was submitted as a job to Flink to perform the above-mentioned steps, considering a window of 2 minutes and calculating the average amount transacted from the same mobile number (upi id) on the simulated UPI transactional data stream. The following list of jar files has been included on the project build or classpath.

Using the code below, we can get the Flink execution environment inside the developed Java class.

Configuration conf = new Configuration();
  StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(conf);

Now we should read the messages/stream that has already been published by the simulator to the Kafka topic inside the Java program. Here is the code block.

KafkaSource kafkaSource = KafkaSource.<UPITransaction>builder()
    .setBootstrapServers(IKafkaConstants.KAFKA_BROKERS)// IP Address with port 9092 where leader broker is running in cluster
    .setTopics(IKafkaConstants.INPUT_UPITransaction_TOPIC_NAME)
    .setGroupId("upigroup")
    .setStartingOffsets(OffsetsInitializer.latest())
    .setValueOnlyDeserializer(new KafkaUPISchema())
    .build();

To retrieve information from Kafka, setting up a deserialization schema within Flink is crucial for processing events in JSON format, converting raw data into a structured form. Importantly, setParallelism needs to be set to no.of Kafka topic partitions else the watermark won't work for the source, and data is not released to the sink.

DataStream<UPITransaction> stream = env.fromSource(kafkaSource, WatermarkStrategy.forBoundedOutOfOrderness(Duration.ofMinutes(2)), "Kafka Source").setParallelism(1);

With successful event retrieval from Kafka, we can enhance the streaming job by incorporating processing steps. The subsequent code snippet reads Kafka data, organizes it by mobile number (upiID), and computes the average price per mobile number. To accomplish this, we developed a custom window function for calculating the average and implemented watermarking to handle event time semantics effectively. Here is the code snippet:

SerializableTimestampAssigner<UPITransaction> sz = new SerializableTimestampAssigner<UPITransaction>() {
   @Override
   public long extractTimestamp(UPITransaction transaction, long l) {
    try {
     SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd'T'HH:mm:ss'Z'");
     Date date = sdf.parse(transaction.eventTime);
     return date.getTime();
    } catch (Exception e) {
     return 0;
    }
   }
  };

WatermarkStrategy<UPITransaction> watermarkStrategy = WatermarkStrategy.<UPITransaction>forBoundedOutOfOrderness(Duration.ofMillis(100)).withTimestampAssigner(sz);
DataStream<UPITransaction> watermarkDataStream = stream.assignTimestampsAndWatermarks(watermarkStrategy);

//Instead of event time, we can use window based on processing time. Using TumblingProcessingTimeWindows
DataStream<TransactionAgg> groupedData = watermarkDataStream.keyBy("upiId").window(TumblingEventTimeWindows.of(Time.milliseconds(2500),
       Time.milliseconds(500))).sum("amount");
          .apply(new TransactionAgg());

Eventually, the processing logic (computation of average price for the same UPI ID based on a mobile number for the window of 2 minutes on the continuous flow of transaction stream) is executed inside Flink. Here is the code block for the Window function to calculate the average amount on each UPI ID or mobile number.

public class TransactionAgg
   implements WindowFunction<UPITransaction, TransactionAgg, Tuple, TimeWindow> {

  @Override
  public void apply(Tuple key, TimeWindow window, Iterable<UPITransaction> values, Collector<TransactionAgg> out) {
   Integer sum = 0; //Consider whole number
   int count = 0;
   String upiID = null ;
   for (UPITransaction value : values) {
    sum += value.amount;
    upiID = value.upiID;
    count++;
   }

   TransactionAgg output = new TransactionAgg();
   output.upiID = upiID;
   output.eventTime = window.getEnd();
   output.avgAmount = (sum / count);
   out.collect( output);
  }

 }

We have processed the data. The next step is to serialize the object and send it to a different Kafka topic. Add a KafkaSink in the developed Java code (StreamingToFlinkJob.java) to send the processed data from the Flink engine to a different Kafka topic created on the multi-node Kafka cluster. Here is the code snippet to serialize the object before sending/publishing it to the Kafka topic:

public class KafkaTrasactionSinkSchema implements KafkaRecordSerializationSchema<TransactionAgg> {


    @Override
    public ProducerRecord<byte[], byte[]> serialize(
            TransactionAgg aggTransaction, KafkaSinkContext context, Long timestamp) {
        try {
            return new ProducerRecord<>(
                    topic,
                    null, // not specified  partition so setting null
                    aggTransaction.eventTime,
                    aggTransaction.upiID.getBytes(),
                    objectMapper.writeValueAsBytes(aggTransaction));
        } catch (Exception e) {
            throw new IllegalArgumentException(
                    "Exception on serialize record: " + aggTransaction, e);
        }

    }
}

And, below is the code block to sink the processed data sending back to a different Kafka topic.

KafkaSink<TransactionAgg> sink = KafkaSink.<TransactionAgg>builder()
    .setBootstrapServers(IKafkaConstants.KAFKA_BROKERS)
    .setRecordSerializer(new KafkaTrasactionSinkSchema(IKafkaConstants.OUTPUT_UPITRANSACTION_TOPIC_NAME))
    .setDeliveryGuarantee(DeliveryGuarantee.AT_LEAST_ONCE)
    .build();
 groupedData.sinkTo(sink); // DataStream that created above for TransactionAgg
  env.execute();

Connecting Druid With Kafka Topic

In this final step, we need to integrate Druid with the Kafka topic to consume the processed data stream that is continuously published by Flink. With Apache Druid, we can directly connect Apache Kafka so that real-time data can be ingested continuously and subsequently queried to make business decisions on the spot without interventing any third-party system or application. Another beauty of Apache Druid is that we need not configure or install any third-party UI application to view the data that landed or is published to the Kafka topic. To condense this article, I omitted the steps for integrating Druid with Apache Kafka. However, a few months ago, I published an article on this topic (linked earlier in this article). You can read it and follow the same approach.

Final Note

The provided code snippet above is for understanding purposes only. It illustrates the sequential steps of obtaining messages/data streams from a Kafka topic, processing the consumed data, and eventually sending/pushing the modified data into a different Kafka topic. This allows Druid to pick up the modified data stream for query, analysis as a final step. Later, we will upload the entire codebase on GitHub if you are interested in executing it on your own infrastructure.

I hope you enjoyed reading this. If you found this article valuable, please consider liking and sharing it.
